Model Number：SUB-1201D2

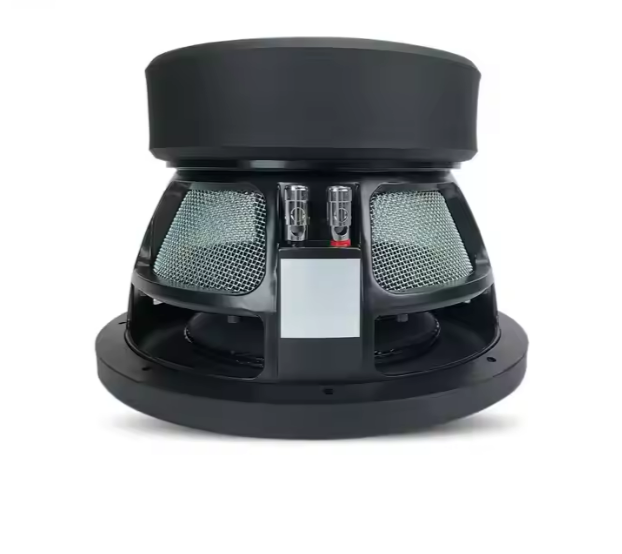

Product pictures：
1.
FREQUENCY SWEEP RANGE(扫频范围)
35Hz-1000Hz
2.
FRAME (盆架材质)
Aluminum basket
3.
MAGNET (磁体)
Dual Ferrite
4.
Magnet Diameter 磁钢直径
220mm
5.
AES Power Handing AES功率
1500W
6.
Continuous Program Power 连续功率
3000W
7.
Sensitivity 1W/1M 灵敏度
90dB
8.
Voice Coil Diameter 音圈直径
75mm
9.
Voice Coil Material 线材
Pure Copper
10.
Cone And Dust Cap 音盆
Composite paper
THIELE & SMALL PARAMETERS / 参数
11. 1
Rosonanco Frequency 共振频率 Fs
29Hz
12.
Mechanical Factor 机械品质因数值
4.89
Qms
13.
Electrical Factor 电品质因数值
0.39
Qes
14.
Total Factor 总品质因数值
0.36
Qts
15.
BL Factor 磁力
24.93
BL
16.
Effective Moving Mass 有效移动质量
511.32
Mms
17.
Compl iance 力顺
0.05
Cms
18.
Equivalent Cas Air Load 有效容积
19.95
Vas
19.
38mm
Xmax
Model Number：SUB-1201D4
32.73Hz
4.51
0.42
0.38
39.3
443.49
17.9
